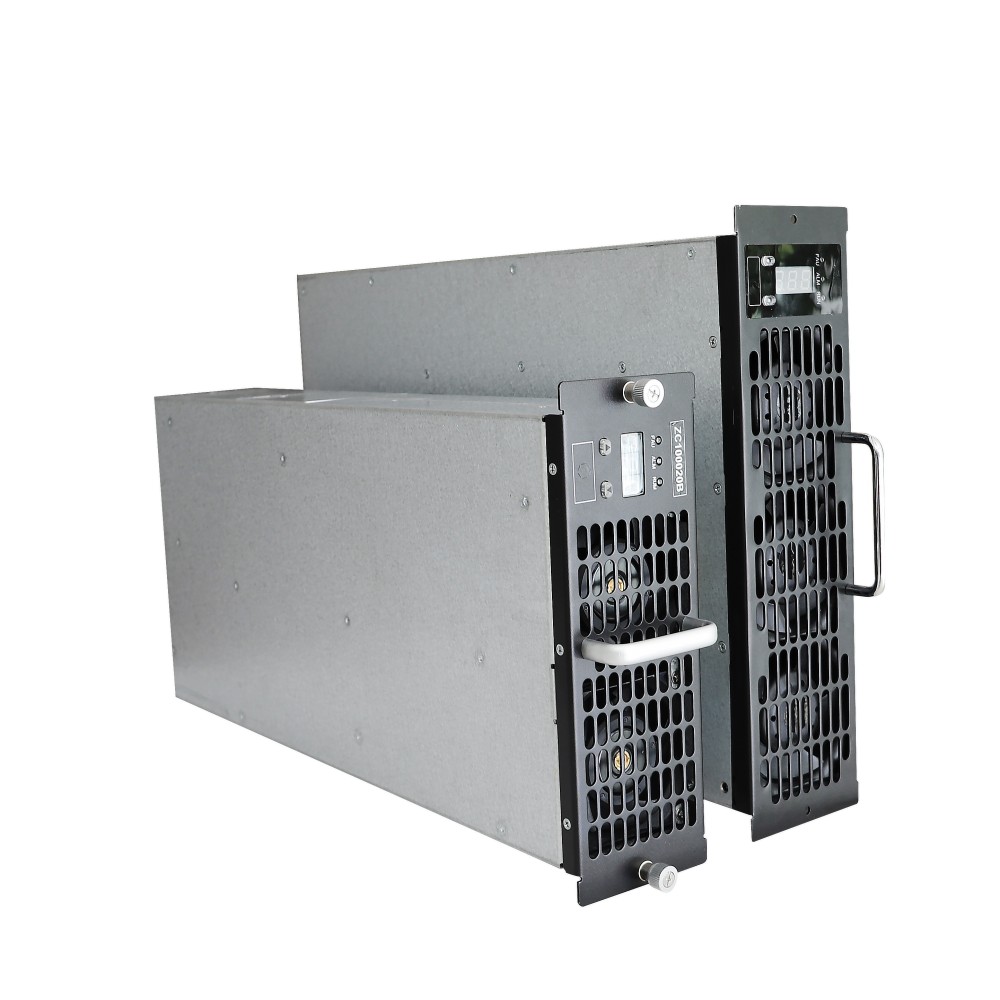

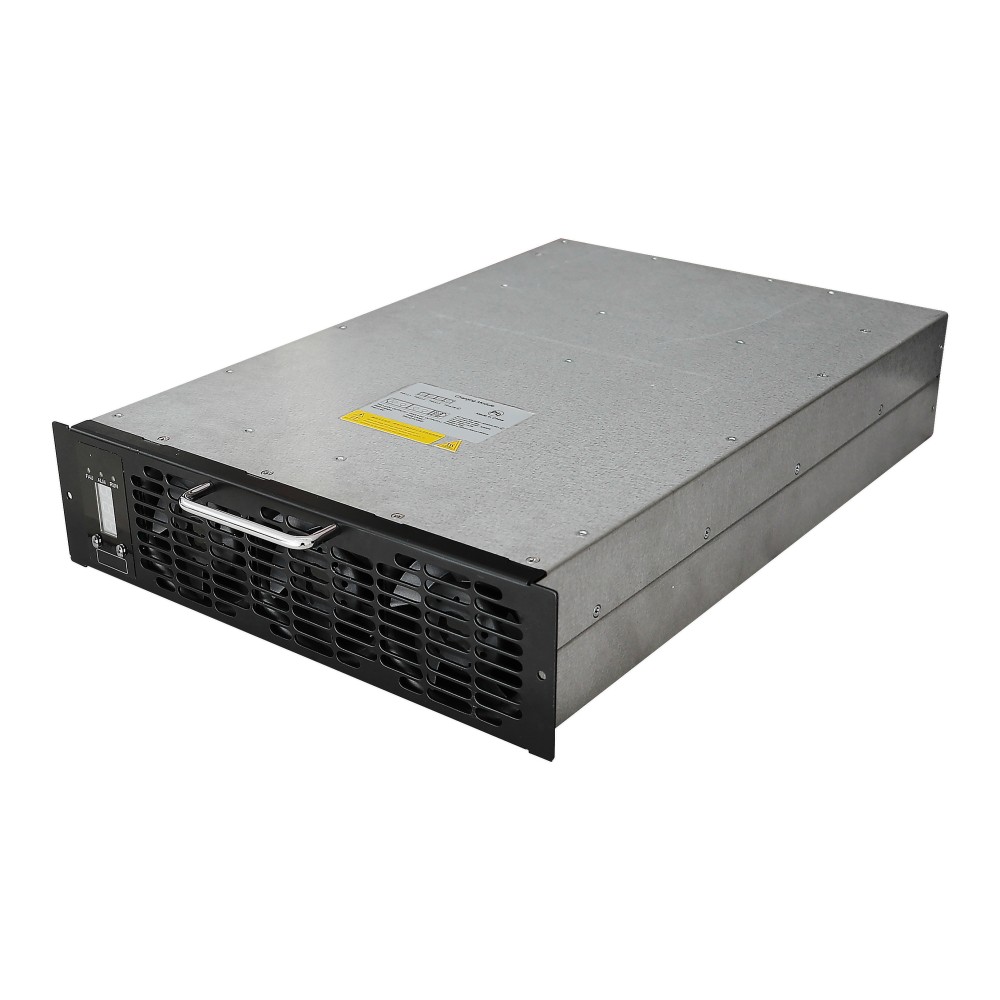

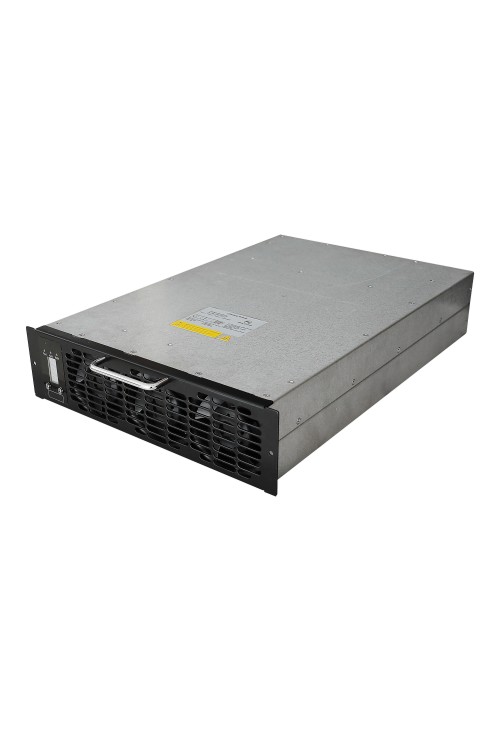

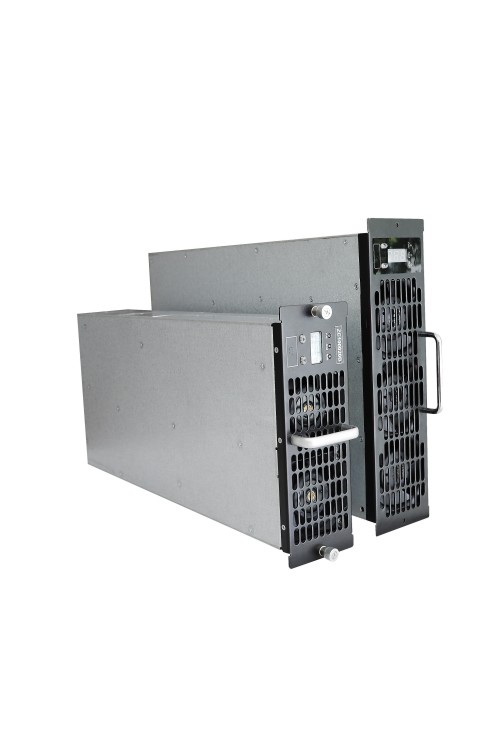

30KW DC Module EMU100020X for Super Charger Station
- Brands VIVILEO
- Product Code:EMU100030X
- Availability:In Stock
-
$599.00
30KW DC Module EMU100020X for Super Charger Station
Datasheet Rev1.0
Wide voltage range: 200~1000VDC
High efficiency: Maximum efficiency greater than 95%.
Intelligent air-cooling for heat dissipation
Low standby power consumption for improved operational profitability
Multiple intelligent detection and protections
Built-in backflow preventer circuit
Built-in PFC (power factor correction) circuit to improve input power factor
| Electrical properties |
| Input voltage | AC480V±10% |
| Operating frequency | 60±1Hz |
| Power factor | ≥0.99 |
| Standby power consumption | <10W |
| Output voltage | DC200~1000V |
| Output power | 30kW |
| Operating current | 0~100A |
| Peak efficiency | ≥96.2% |
| Voltage stabilization accuracy | ≤±0.5% |
| Stabilization accuracy | ≤±1% |
| Communication | CAN |
Safety and Protection |
| Certificate | ETL (compliant) |
| Standard | UL 2202, UL 2231-1, UL 2231-2,CSA NO.107.1-16,NEC Article 625,ISO 15118 |
| Protection | OVP;OCP;UVP;OTP;OLP; Integrated surge protection, etc. |
Environment |
| Operating Temperature | -30 ℃ to +75 ℃/-22℉ to +167℉ |
| Storage Temperature | -40 ℃ to +75 ℃/-40℉ to +167℉ |
| Operating Humidity | 5-95%RH non-condensing |
| Enclosure Ratings | IP20 |
| MTBF | ≥500,000H |
| Altitude | ≥2000m |
| Cooling method | Intelligent air-cooling |
| Mechanical |
| Dimensions | 460*300*85mm |
| Weight (Net) | ≤15 kg |
| Color | Customizable |
