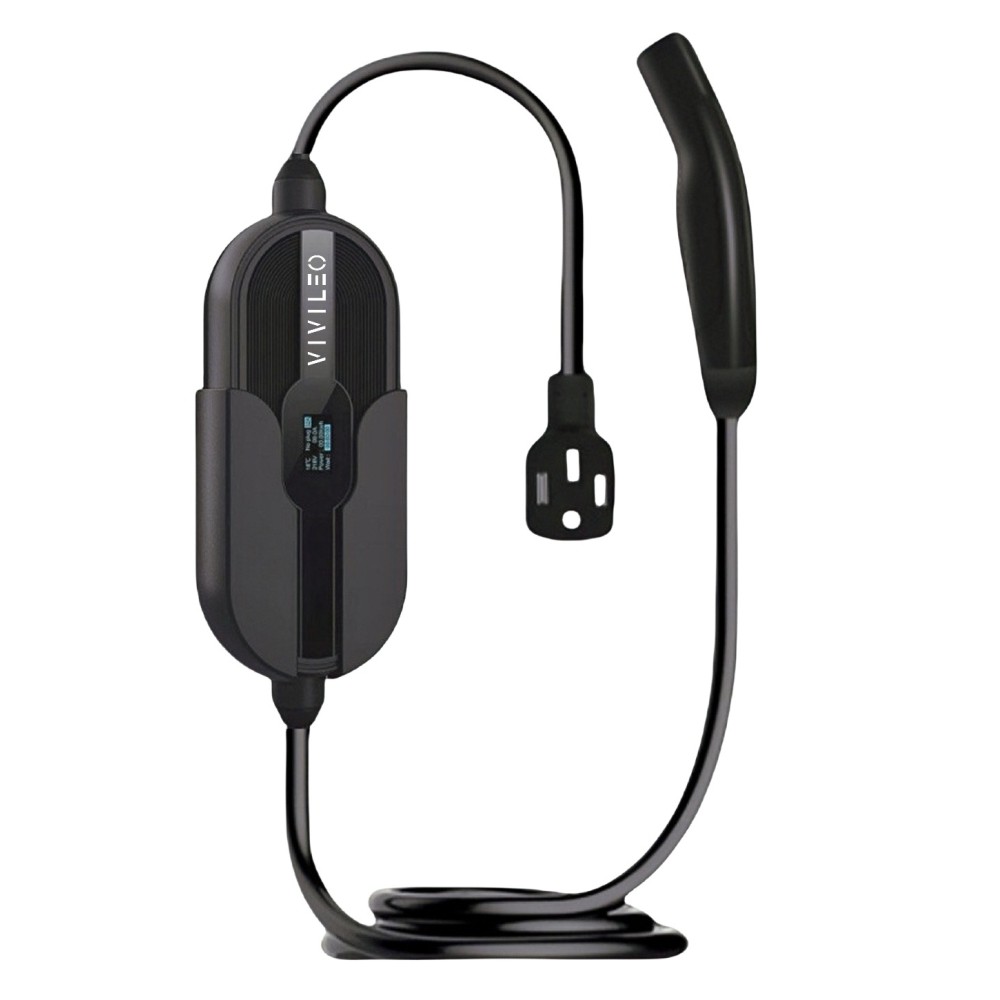

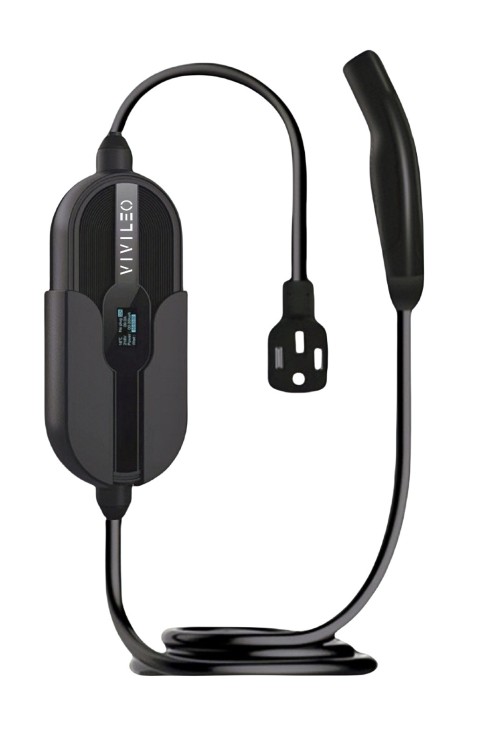

Portable EV charger EMA08-U007K Series
- Brands Elecktron Milee
- Product Code:EMA08-U007K Series
- Availability:In Stock
-
$249.99
EV Charger
Rev:1.0
EMA08 Series
l Exquisite industrial design and craftsmanship;
l Reservation time charging;
l Multiple charging methods, suitable for different usage scenarios;
l Multiple safety protections to protect vehicles and people;
l Protection level Type 4, suitable for outdoor environments with splash water, Aeolian dust, and rainfall.
Electrical properties |
| Output Power | 7kW |
| Operating Voltage | 240Vac(±15%);L1/L2/PE |
| Operating Frequency | 60±1Hz |
| Operating Current | 32A(Max) |
| Current Adjustability | 16A-20A-24A-32A |
Safety and Protection |
| Certification | ETL(Meet) |
| Standard | UL2231-1/-2;UL2594;UL991;UL2251;UL1998 |
| Charge Modes | Mode 2 |
| AC Input Plug | NEMA 14-50P |
| Connector Type | Type 1 (SAE J1772) |
| RCD/CCID | CCID 20 |
| Protection | OVP;OCP;UVP;OTP;OLP; Integrated surge protection, etc. |
Environment |
| Operating Temperature | -30℃ to +50℃/-22℉ to +122℉ |
| Storage Temperature | -35℃ to +80℃/-31℉ to +176℉ |
| Operating Humidity | 5-95%RH non-condensing |
| Protection Level | TYPE 4 |
| Operating Altitude | 2000m |
Connectivity & Installation |
| Start mode | APP Charging(Tuya) +plug-and-charge(Quick start) |
| Status Indicator | Three Color LED |
| WLAN Communication | Wi-Fi / Bluetooth |
| Installation | Wallbox/Floor Mounted |
Mechanical |
| Housing material | Polycarbonate |
| Display | 1.3 inch OLED |
| Cable Length | 7.5m |
| Appearance Size | 249.6*113.5*62mm |
| Weight(Net) | ＜4.2kg |
| Colors | Customizable |
